FULL-SERVICE, TURN-KEY MATERIAL HANDLING SOLUTIONS

Rail Programs

MinTech offers a turnkey coal car-topping solution, including the lowest concentration acceptable car-topper agent, a customizable car-topping application system, and routine service to ensure optimal system efficiency. Other solutions include freeze conditioning and side-release during cold, winter months and full-body dust suppression applications for year-round dust control.

bnsf_ribbon



MinTech’s MinTopper S+0150 has been added as an acceptable topper agent to Appendix B of the BNSF Coal Rules and Regulations Freight Tariff document 6041-B revision 20 issued on September 26, 2011.



MinTech’s MinTopper S+0150 has been added as an acceptable topper agent to UP 6603-C Item 215-B Recommended Loading Measures to Mitigate Coal Dust as of January 15th, 2014

up_ribbon

products

coaltrol60 (catalog)

Coaltrol 60

Low-moisture, foamable dust suppressant.  Formulated with super wetting surfactant chemistry to control dust in unloading, transfer, and storage of coal, flyash, and other friable minerals. Exhibits binding properties that provide extended dust suppression both downstream of the application point and during storage. Concentrated formulation dilutes as much as 1:125 for typical applications.

  • Forms a wet, tacky, hydroscopic film upon curing
  • Typically provides 15 to 25 days residual dust suppression
  • Does not impact burn characteristics or flyash composition
  • Reduces the number of application points required to control your dust problems
  • The added binding agent allows for extended dust control in plant, rail, and barge application areas
REQUEST PRODUCT INFORMATION



REQUEST QUOTE

tm11517coaltrolf430 (catalog)

CoalTrol F430

High-expansion foam provides maximum coverage with minimal moisture addition, signicantly reducing water consumption. Fortfied with Flame Freeze Anti-Oxidant Spontaneous Combustion Inhibitor. Produces a dust-encapsulating foam that is ideal for a variety of applications including foam cleaning, coal transfer houses, coal crushing, coal storage, and other areas where coal dust is created. The low-moisture foam properties reduce BTU loss and reduce the risk of shorting out electrical components during on-line facility cleaning applications. Unique cationic surfactant chemistry attracts negatively charged coal dust particles, improving cleaning and dust reduction compared to conventional nonionic and anionic chemistries.

• Non-corrosive, neutral pH, and environmentally-friendly.
• Super wetting chemistry binds dust nes together, reducing fugitive dust emissions.
• Dilutes up to 1:400 with hard and soft water and can be used in most air-driven foam machines.
• Long-lasting foam reduces the number of application points required to control process dust problems.
• Perfect for removing dusts from walls and equipment as well as from oors, ducts, pipes, hoods, ledges, beams, and other horizontal surfaces.
• Anti-static properties dissipate electrostatic energy on treated surfaces and anti-oxidant properties scavenge free radicals to help prevent the conditions that lead to explosions in coal dust areas.

REQUEST PRODUCT INFORMATION



REQUEST QUOTE

coaltrolf65 (catalog)

CoalTrol F65

A residual surfactant-based product used to control dust in unloading, transfer, and storage of coal, y ash, and other friable minerals. Contains Momar’s exclusive Flame Freeze anti-oxidant spontaneous combustion elimination technology.

• Exhibits binding properties that provide extended dust suppression both downstream of the application point and during storage.
• Typically provides 60 days residual dust suppression and 60 days residual spontaneous combustion reduction.
• Forms a tacky, hydroscopic film upon curing.
• Reduces the number of application points required to control your dust problems (reduces the number of chemical application points when transferring coal to silos or bunker areas).
• Freeze thaw stable and heat stable up to 120° F.
• The added binding agent allows for extended dust control in plant, rail, and barge application areas.
• Reduces moisture exchange and scavenges free radicals to inhibit exothermic reactions that lead to hot spots and fires in coal storage.

REQUEST PRODUCT INFORMATION



REQUEST QUOTE

coaltrolcomplete (catalog) 2

CoalTrol Complete



Solve material handling and storage challenges of lower rank coals by eraiducation spontaneous combustion, preventing coal from freezing, and controlling dust with an all-in-one solutions. Full-body treatment fortified with residual binders, humecatants, freeze protectants, and spontaneous combustion inhibitors, answers the industry’s need for complete coal management.

• Humectant qualities aid in dust control by enhancing moisture retention
• Binders provide long residual dust control making coal handling and storage safer and easier
• Improves air quality and increases worker safety and visibility
• Excellent clingability to vertical surfaces and high lubricity
in cold temperatures enhance performance and resist washout
• Provides freeze protection down to -48°F (-44°C)
• Retards coal oxidation and controls evaporation rates, preventing spontaneous combustion

REQUEST PRODUCT INFORMATION



REQUEST QUOTE

coaltrol65 (catalog)

Coaltrol 65

High-coverage, sprayable dust suppressant.  Formulated with super wetting surfactant chemistry to control dust in unloading, transfer, and storage of coal, flyash, and other friable minerals. Exhibits binding properties that provide extended dust suppression both downstream of the application point and during storage. Concentrated formulation dilutes as much as 1:125 for typical applications.

  • Forms a wet, tacky, hydroscopic film upon curing
  • Typically provides 15 to 25 days residual dust suppression
  • Does not impact burn characteristics or flyash composition
  • Reduces the number of application points required to control your dust problems
  • The added binding agent allows for extended dust control in plant, rail, and barge application areas
REQUEST PRODUCT INFORMATION



REQUEST QUOTE

foam picture

Coaltrol 430

Foamable product containing wetting agents used to control dust in the unloading, transfer, and storage of coal and other friable materials.  High-expansion foam provides maximum coverage with minimal moisture addition in order to reduce BTU loss.  Execellent for process coal dust as well as facility wash down applications.  Compatible with Momar’s FoamMaxx Portable Wash Down System and with Momar’s Freedom Foamer Wall-Mounted Wash Down Station.

  • Super wetting chemistry binds coal fines to larger lump coal, reducing fugitive dust at the application point and downstream at the point of storage
  • Long-lasting foam reduces the number of application points required to control dust problems
  • Non-corrosive, biodegradable, chloride-free, and phosphate-free
  • For use on conveyors, transfer belts, booms, chutes, and feed lines
  • Dilutes 1:100 – 1:400 and applied at 0.3 – 0.7 gallons of solution per ton, typically
  • When applied to vertical surfaces, the dry foam “walks” down the wall carrying fines and soils with it
REQUEST PRODUCT INFORMATION



REQUEST QUOTE

mincryl (catalog)

MINCRYL X50

High-solids, latex polymer dust suppressant. Formulated with a proprietary acrylic and vinyl polymer blend.  Provides optimum penetration and bonding to control dust, prevent erosion, and enhance appearance on light-traffic and non-traffic areas.  Forms a moisture-permeable membrane to reduce vapor loss and moisture gain in coal, which reduces the chances of spontaneous combustion.  Use on slopes, coal piles, fly ash ponds, aggregate piles, and equipment yards.

  • Clear, film-forming crust
  • Dilutes up to 1:15 with water
  • Safe for use in and around sensitive habitats
  • Superior cohesion and elasticity provides long-lasting performance
  • Perfect for waterproofing and surface sealing applications following the use of Steadfast
REQUEST PRODUCT INFORMATION



REQUEST QUOTE

MINTECH CAR TOPPER SPRAY MANIFOLD  4

MINTOPPER S+0150

High-solids, acrylic/vinyl emulsion specially formulated to provide optimum penetration and bonding when applied to fine or granular materials. Superior cohesion and elasticity are provided by the unique binding agents in MinTopper S+0150. MinTopper S+0150 provides a durable, water-resistant surface.  Because it is formulated for use in and around sensitive habitats, MinTopper S+0150 is an environmentally sound solution for dust control and stabilization needs.

  • Exhibits binding properties that provide extended dust suppression both downstream of the application point and during storage.
  • Ultra concentrated formulation reduces freight impact.
  • Typically provides 90 – 180 days residual dust suppression.
  • Forms a firm, rubbery crust upon curing.
  • Crust is heat stable and water resistant.
  • Ideal for in-transit coal dust suppression application.
  • Does not impact burn characteristics or fly ash composition.
  • No adverse fireside problems.
REQUEST PRODUCT INFORMATION



REQUEST QUOTE

CATALOG IMAGE

Mincryl WP

High-solids, rubberized polymer coating. Formulated to form a strong, waterproof, elastomeric film barrier.  Provides optimum penetration and bonding to seal out vapors, provide water resistance, control dust, prevent erosion, and enhance appearance on treated surfaces.  Forms a non-permeable membrane that is perfect for pond liner applications to prevent seepage.  Forms a damp-proof membrane on wood, drywall, stone, concrete, brick, and other hard surfaces.  For use on slopes, coal piles, fly ash ponds, aggregate piles, and equipment yards to suppress dust and provide all-season stabilization.

  • Single component system
  • Clear, film-forming membrane
  • Use neat or dilute up to 1:15 with water
  • Safe for use in and around sensitive habitats
  • Apply by spraying, brushing, rolling, or dipping
  • Perfect for waterproofing and surface sealing applications
  • Superior cohesion and elasticity provides long-lasting performance
  • Does not soften at high temperatures or become brittle at low temperatures
  • A 1/16″ film has a tensile strength of up to 562psi and elongation of up to 738%
REQUEST PRODUCT INFORMATION



REQUEST QUOTE

tm06524freezenot65 (catalog)

FREEZENOT 65

Glycerol-based side-release and freeze conditioning agent.  Designed to achieve maximum freeze protection while minimizing environmental impact.  An excellent alternative to calcium chloride, magnesium chloride, potassium acetate, and other salt-based products.  Perfect for in-transit freeze conditioning of coal.  Also proven to perform well in water trucks, brine trucks, agricultural solution tanks, and aggregate storage when protection from freezing is desired.

  • Provides freeze protection down to -53°F
  • Non-corrosive – actually protects metal parts
  • Non-flammable – contains no alcohols or petroleum derivatives
  • Humectant qualities aid in dust suppression by enhancing moisture retention
  • Excellent clingability to vertical surfaces and high lubricity in cold temperatures enhances performance and resists washout
REQUEST PRODUCT INFORMATION



REQUEST QUOTE

tm08510freezenotmc (catalog)

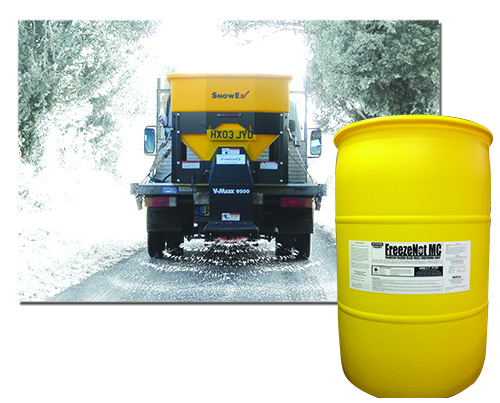

FREEZENOT MC

Ultra-pure deicer, anti-freeze, and freeze conditioning agent.  Formulated with corrosion inhibitors to help protect mild steel and other metal surfaces.  Impurities have been removed by a proprietary process to reduce handling problems and maintain low viscosity, even in sub-zero temperatures.  Environmentally-friendly and low in sulfur.  Effective down to -58°F.

Great For:
  • Pre-wetting of sand and road salt
  • Freeze-conditioning of coal during rail transit
  • Pre-storm anti-icing to prevent hazardous conditions
  • Pile treatments during stack-out to prevent pile freezing
  • Ice-melting applications and ground thawing applications
REQUEST PRODUCT INFORMATION



REQUEST QUOTE

tm09527freezenotigc (catalog)

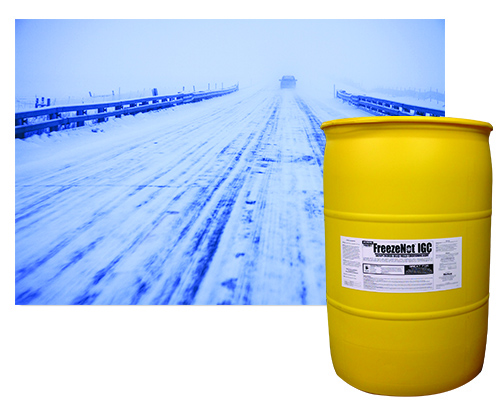

FREEZENOT IGC

Ultra-pure deicer, anti-freeze, and freeze conditioning agent. Formulated with corrosion inhibitors to help protect mild steel and other metal surfaces.  Perfect for driveways, walkways, ramps, decks, stairs, entryways, roadways, and other surfaces where snow and ice present a problem.  Effective down to -70°F and prevents refreezing for up to 24 hours.  1 gallon treats up to 200 square feet.   Will not damage vegetation.  Non-flammable and non-hazardous to ship.  Will not track onto carpets and floors.

Great For:
  • Pre-wetting of sand and road salt
  • Freeze-conditioning of coal during rail transit
  • Pre-storm anti-icing to prevent hazardous conditions
  • Pile treatments during stack-out to prevent pile freezing
  • Ice-melting applications and ground thawing applications
